1976 Beechcraft Bonanza V35B Aircraft

Single Engine Propeller


Sold on: 5/10/2019
Priced as: US $125,000

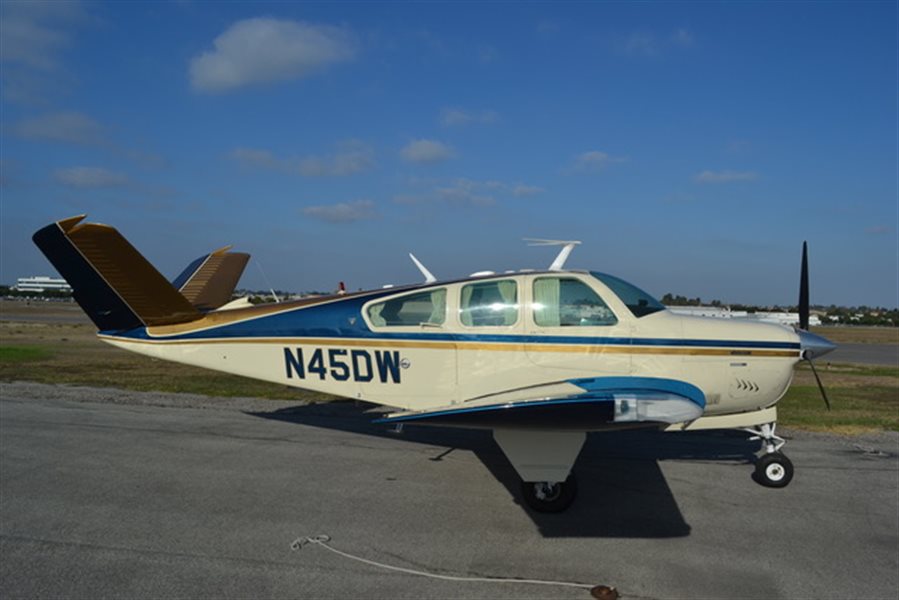

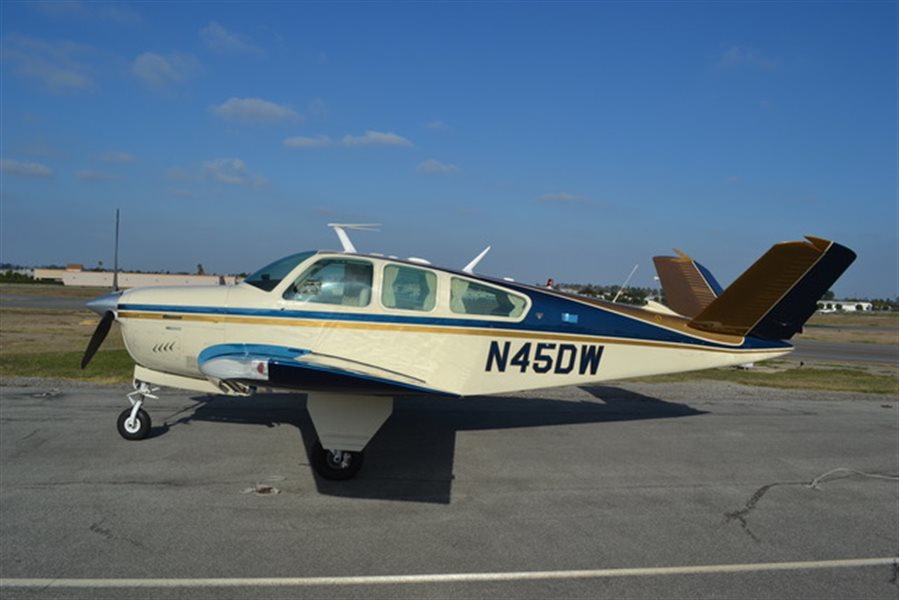

1976 Beechcraft Bonanza V35B Aircraft
Aircraft TypeSingle Engine Propeller
ModelBonanza V35B
ConditionUsed Aircraft
Sale TypeFor Sale
CurrencyUS $
Price $125,000 Excl State and federal taxes
LocationCalifornia, United States
Registration NoN45DW
Serial NumberD-9840
Year Built1976
Total Time Airframe8009

NEW ARRIVAL! Beautiful and well equipped V35B - Garmin ADS-B - Skywatch Traffic!

This beautiful example of a V35B has been perfectly maintained throughout her lifetime. After manufacture she went to Cutter Aviation for a conversion to a V35B-TC with Rajay Turbochargers. The current owner (since 1985), operated her in this configuration until converting her to a non-turbo V35B with a TCM IO-550-B46B engine installed in 2014 under the D'Shannon STC, including their STCd baffle kit. The instrument platform is exceptionally capable with fully coupled GNS 530W and KLN90B GPS systems integrated to a Century IIIC autopilot. This autopilot system includes the Edo Aire (Century) yaw damper system with yaw rate gyros to eliminate any yaw tendencies. Paint by Baron Refinishers and a custom leather design upholstery complement this extremely capable aircraft. You will not find a better maintained aircraft of this vintage.

Dual instruction, export and worldwide delivery available. All trades considered.

Engine Specifications

Continental IO-550-B46B, SN 1010799

Champion RHB32S Fine Wire Plugs

431 Hours Since Factory Re-Manufacture

Installation in 2014 using D'Shannon IO-550B STC SA2200SW

Installation Includes D'Shannon Baffle Kit, GAMI Injectors, 100# Gross Increase

Teardown and Inspection for Prop Strike in 2017 by Tim's Aircraft Engines, Long Beach, CA

Insight GEM G-1 Engine Analyzer

Shadin Fuel Flow


McCauley 3 Blade, Part 3A32C76, Hub 871670

5671 TTSN

53 HRS Since Complete Overhaul with New Blades by Johnson Propeller

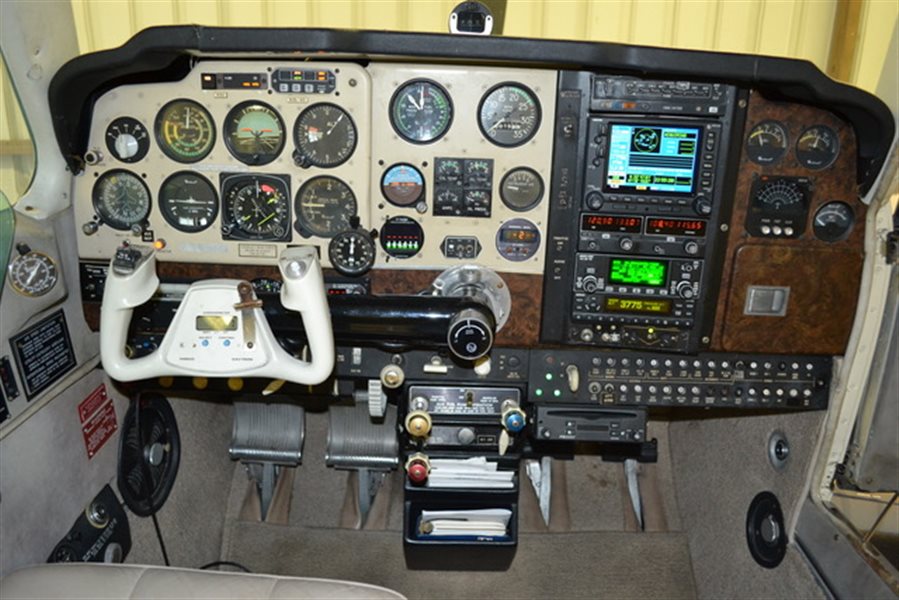

Garmin GNS 530W (WAAS) GPS/Nav/Com, Fully Coupled w/Roll Steering (DAC-31)
King KLN90B GPS (Also Selectable for Autopilot Couple), KA57 Adapter
Century IIIC Autopilot, w G/S Capture and Track, Accepts both GPS Commands
Edo-Aire (Century), Yaw Damper System (Yaw Rate Gyro)
Electric Pitch Trim
Garmin GTX 330 ES Transponder w/ADS-B Out
KCS 55A HSI w/Slave System
Garmin GI 106 VOR/GS/LOC Indicator
King KX165 TSO Nav/Com
L3 SkyWatch 497 (Traffic) – Displays on GNS 530W
PM 3000 Audio Panel plus PXE 7300 Radio and CD Player
WX-8 Stormscope
AIM Electric Attitude Gyro with power supply (Backup)
Model 903 DVOR
Aux Plug to Connect Handheld VHF to Ship's Antenna
Garmin GLA69A (Sirius XM Interface)
ACK E-04 ELT (406 MHZ)
Pigtail Connector for Aux Audio In


Excellent Condition Throughout

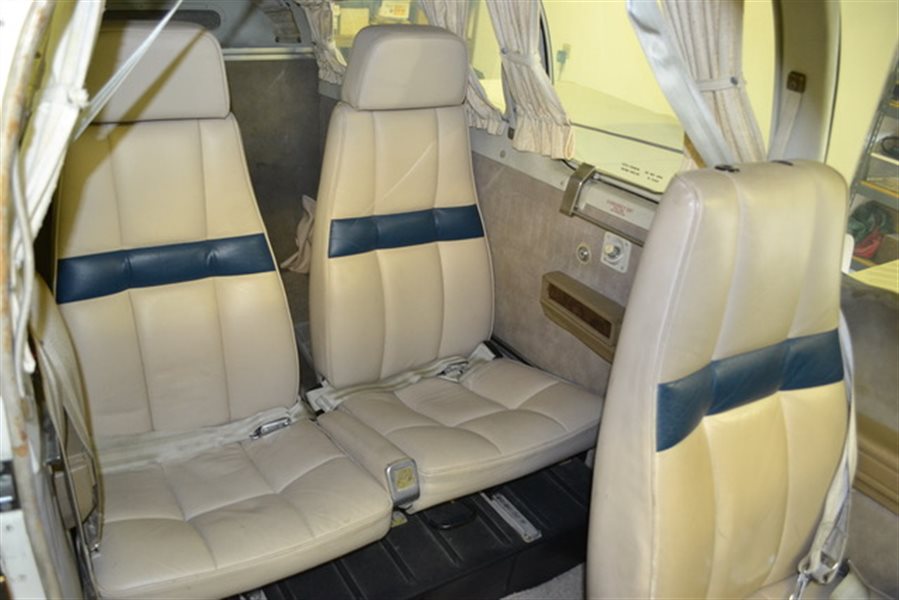

Custom Leather Upholstery Installed 2001 (Sky Interiors, Long Beach)
New Carpet and Side Panels in 2001
Four Seats Installed, Fifth Seat Included with Original Upholstery


Excellent Paint Condition
1992 Paint by Baron's Refinsher, (Torrance, CA), Always Hangared
2003 Paint Refurbish of Wing Leading Edge, Nose Gear, Wing Walk
Built In O2 System- 67CF, Five Positions
Whelen Strobe System
Four Bose Headsets, Single Plug, Ship's Power (No Batteries)
Dual Control Yoke Included (Single Yoke Installed)
Halon Fire Extinquisher
Rosen Visors
Bruce Window Heat Shields Included
Northwest MFR Power Tow Electric Tug Included
Beechcraft Shop Manuals Included
Complete Logs
