| 1986 Beechcraft Bonanza B36TC Aircraft |
| Aircraft Type | Single Engine Propeller |
| Make | Beechcraft |
| Model | Bonanza B36TC |
| Condition | Used |
| Sale Type | For Sale |
| Currency | US $ |
| Price | $399,900 |
| Location | Colorado, United States |
| Registration No | N819DM |
| Serial Number | EA-456 |
| Year Built | 1986 |
| Total Time Airframe | 3354 |
| Comments |
|---|
NEW ARRIVAL! Stunning and Beautifully Equipped - IO550 Turbo-Normalized AirplanesUSA proudly present this magnificent, better-than-new B36TC Bonanza! Absolutely stunning, low-time, no damage history aircraft with no expense spared in upgrades and maintenance. IO-550 and Tornado Alley Whirlwind III Turbo-normalized Conversion! This truly is a turn-key cross-country beast with the finest avionics, a McCauley 3-blade prop and a flawless airframe. A fraction of the price of a late model G36! This beautiful aircraft is ready for your next family cross-country adventure or business trip. Unmatched safety and reliability. Cruise in the flight levels with a built-in oxygen system. This legendary Beechcraft is the plane of a lifetime. Dual instruction, and worldwide delivery are available. All trades considered. |
|
| Engine Specifications |
|---|
Continental IO-550-B(AP) Tornado Alley Whirlwind III Conversion
Turbo-Normalized - Maintains Sea Level MP to Cruise Altitude
TTSMOH: 1387.4
S/N: 813883-R
Installed by Tornado Alley Turbo Inc., July, 2007
Initially "Whirlwind System B36TCP"
Upgraded to "Whirlwind III" with Nose Bowl Air Scoop and Larger Intercooler in 2022
Upgrade to Whirlwind III performed by Tornado Alley Ada, OK.
Number 3 Cylinder replaced July, 2024 Prop(s):McCauley Model 3A32C406-B/G-82NDB-4
1016.3 Total Time since New
Serial Number: 850513
Blade Model G-82NDB-4
Blade Serial Numbers EE113, EE119, EE148
Overhauled July, 2014 by Johnson Propeller Inc., Shafter, CA
Resealed 5/22/2022 |

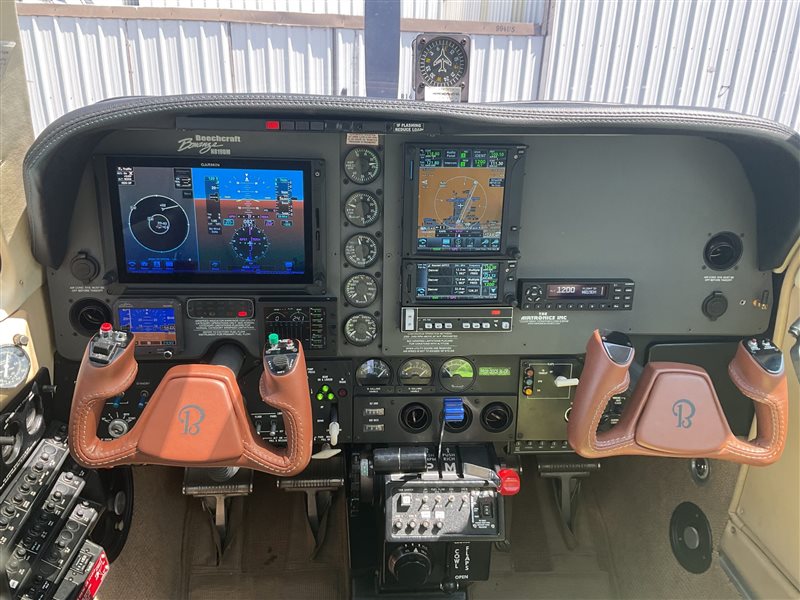

| Avionics |
|---|
Garmin G500TXi PFD/MFD Software version 2.30 (Updated March 2025)
Garmin GTN750 NAV/COMM
Garmin GTN650 NAV/COMM
Garmin GMA345 Audio Panel
Garmin GTX 345 ADS-B Compliant Transponder (Software version updated March 2025)
Garmin GDL 69 Data Link (Software version 4.02 updated March 2025)
King KFC150 Autopilot with DAC GDC41 Roll Steering Converter
JPI 830 Graphic Engine Monitor
New Powder Coated Instrument Panel and Screen-Printed Placarding May 2019
Sandia SAI340 Standby EFIS
Dorne & Margolin ELT System
Precision Aviation PAI-700 Vertical Card Compass
JPI OAT Probe |

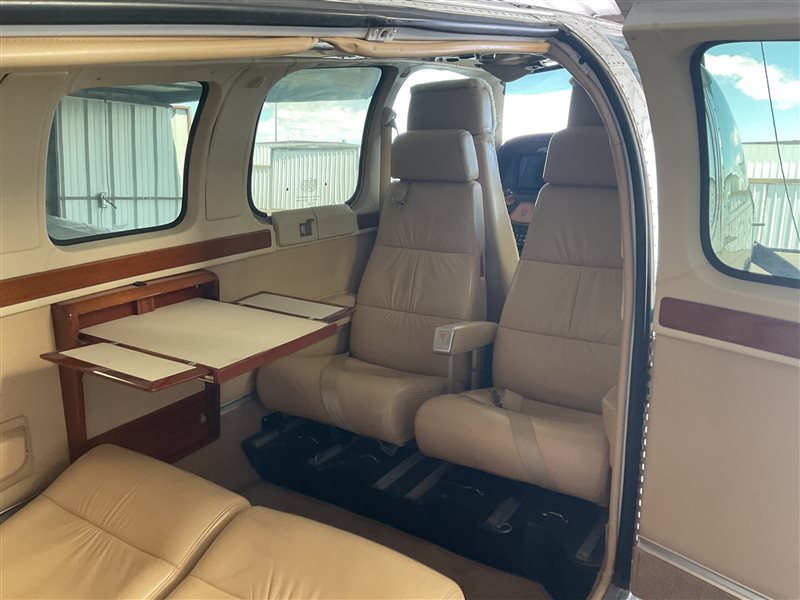

| Interior |
|---|
New interior 2007
Recovered headliner and window panels in ultra leather color Pale Beige
Leather side panels
Recovered crew seats with sheepskin inserts color Rataan
Leather trim
Replaced lap belts and inertial reels by Aircraft Belts Inc.
All floor carpeting replaced with 100% wool; carpet style Design Weave color Sandpiper. |

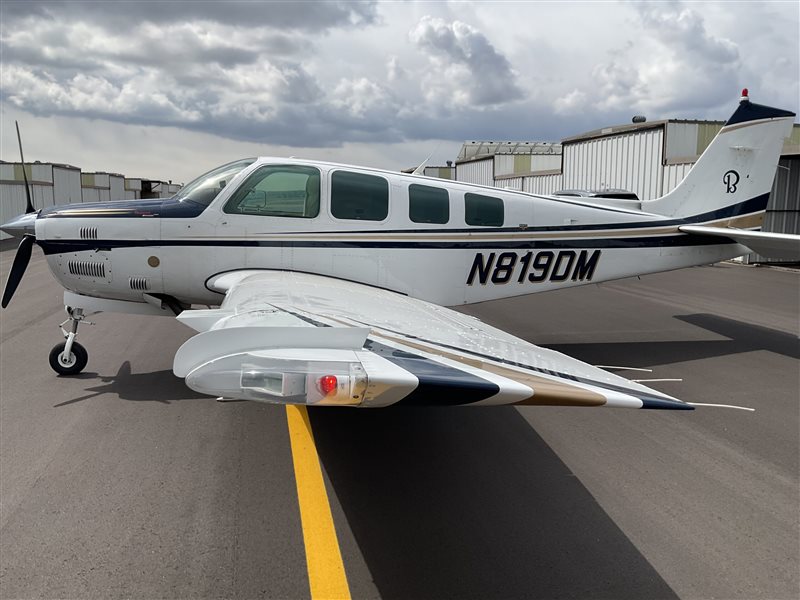

| Exterior |
|---|
Full strip and paint 2007 by Murmer, Arcola, TX
Matterhorn White with Midnight Blue and Las Vegas Gold accents |
| Additional Features |
|---|
Factory Air Conditioning (R12 Freon System) Compressor and Receiver/Dryer Overhauled 2024
G&D Aero Thermal Pane UV-Tinted Window Inserts
Rosen Sun Visors
Beautiful Leather Covered Beech Control Yokes (Replaced May 2019)
406 MHz ELT
New Concord Battery 01 April 2026
Windscreen Replaced July 2018
Shoulder Harnesses
G&D Aero Products Thermal Pane Window Inserts
Whelen Rotating Beacon
LED Nose Gear Landing/Taxi Light
Dual Oxygen Bottle System - Next Bottle Replacements Due 2048
Wired for Battery Minder |
*PLEASE NOTE: Aircraft specifications are subject to verification by the purchaser. It is up to you as the purchaser to conduct your due diligence. Unless given to you in writing by the seller, no warranties are implied or given. Aircraft or parts may be withdrawn from sale at any time. If the price does not contain the notation that it is the total price, the price may or may not include costs such as Stamp Duty, Transfer fees, GST and other State or Federal charges. Please confirm price, fees, charges and features with the seller of the Aircraft or Part.
